Radio over Internet Protocol(IP) Gateway uses standard techniques to transfer the analog and digital signals used by Land Mobile Radio/Repeater Systems digitally over the IP (or Internet). In addition to voice, RoIP also transfers signals that are specific to LMR applications, such as PTT, COR Control lines or other Data Signals. It provides a secure wide area connectivity between Radio Systems at different locations. It supports all radio technologies (Analog, DMR and Digital Tetra Radios) operating over VHF and UHF Bands.

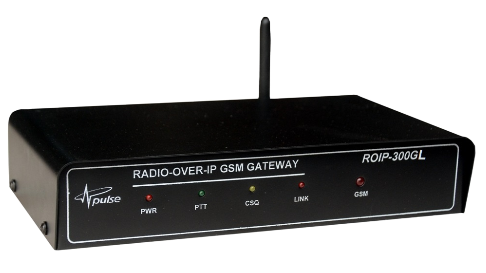

4G/LTE Radio Over IP Gateway - ROIP-300GL
Product Detail
- Model No.: RoIP-300GL
- Single Port Radio Over IP Gateway with 4G/3G Data Support
Download Catalogue
Single Port Radio Over Ip Gateway with 4G(LTE)/3G Support to provide redundant Internet Connectivity from Broadband and 4G/3G Cellular Data. It can be used to connect a Radio Network from either a Broadband/ a 4G/3G Data/ combination of both in redundancy. It has both Broadband Connection Port (RJ45) and SIM Card Slot for IP Connectivity. It supports all ROIP Server Software Editions.

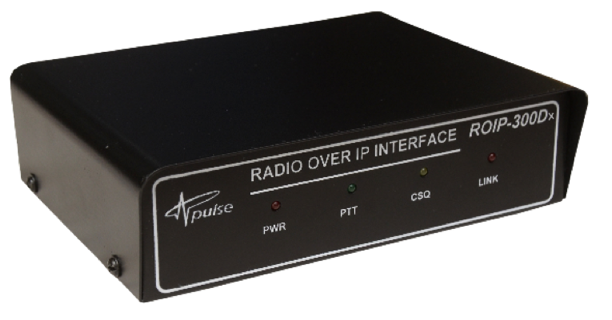

Radio Over IP Gateway (Digital) - ROIP-300Dx
Product Detail
- Model No.: ROIP-300Dx
- Single Port Radio Over IP Gateway with Digital (DMR) Radio Support
Download Catalogue
Single Port Radio Over Ip Gateway with Support for Digital DMR Radios (Mobile Base Stations only). It has support to integrate the DMR Radios Data available over USB/ RS232 Ports from Mobile Base Stations. It has only Broadband Connection Port (RJ45) for IP Connectivity. It supports ROIP Digital Server Software Editions only.

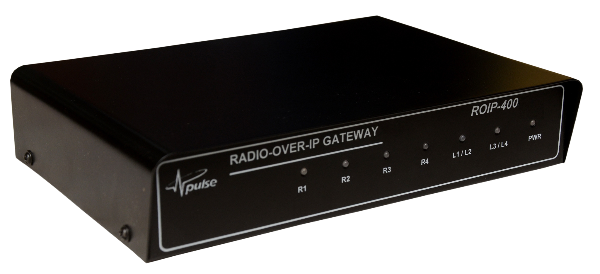

Multi Port Radio Over IP Gateway - ROIP-400
Product Detail
- Model No.: ROIP-400
- Four Port Radio Over IP Gateway
Download Catalogue
Four Port Radio Over Ip Gateway can support upto four diffeent Radio Networks on a single unit. It can also work as a cross patch between different radio networks/ technologies connected on its ports. It has only Broadband Connection Port (RJ45) for IP Connectivity. It supports all ROIP Server Software Editions.

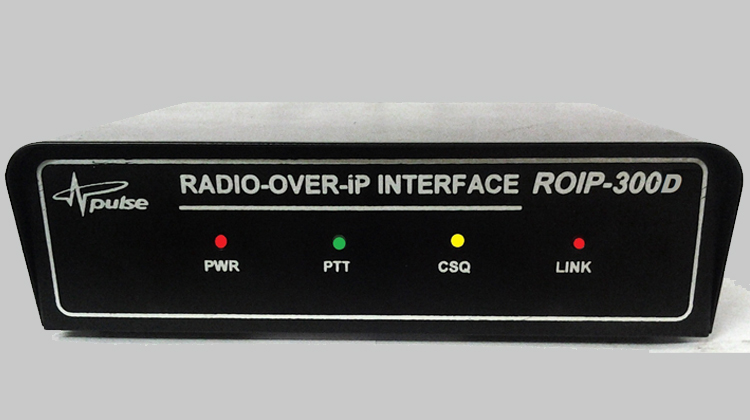

Radio Over IP Gateway with DTMF - ROIP-300D
Product Detail
- Model No.: ROIP-300D
- Single Port ROIP with inbuilt DTMF decoder
Download Catalogue
Single Port Radio Over IP Gateway with inbuilt DTMF Decoder is an advanced version of ROIP-300 with support for ROIP Server Connectivity. DTMF Decoder is useful for calling different Radio Network Sites (Individually/ Group/ Broadcast) connected to ROIP Server directly from their Hand Held DTMF Keypad. It also has provision to Control the Radio Channel Control Pins for Remote Channel Change, RSSI Pin to monitor RSSI Level, Accessory Input and Output Pins for External Relay Control. It has only Broadband Connection Port (RJ45) for IP Connectivity. It supports all ROIP Server Software Editions.

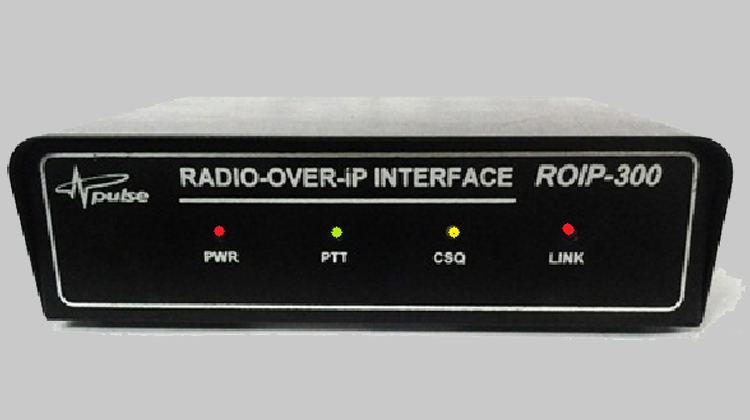

Radio Over IP Gateway (Muti-cast) - ROIP-300
Product Detail
- Model No.: ROIP-300
- Single Port ROIP with Multi-cast Support upto 7 Connections
Download Catalogue

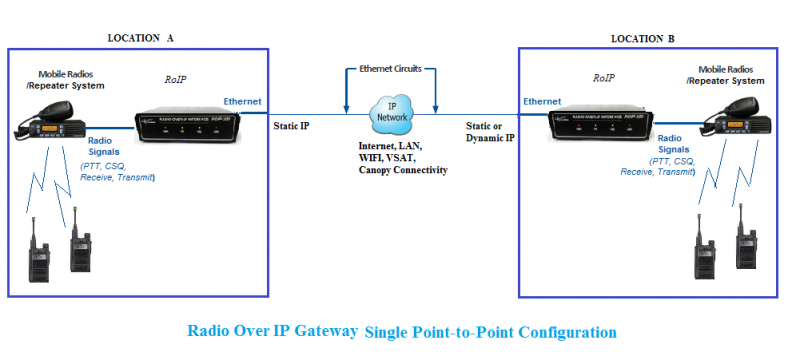

Single Port Radio Over IP Gateway with Multi-cast Support upto 7 Connections, allowing multiple ROIPs to be connected in a Mesh Topology without any central ROIP Server requirements. It can be used in both Point to Point and Multi-Point Configurations. It has only Broadband Connection Port (RJ45) for IP Connectivity. It is not supported on any ROIP Server Software Editions.

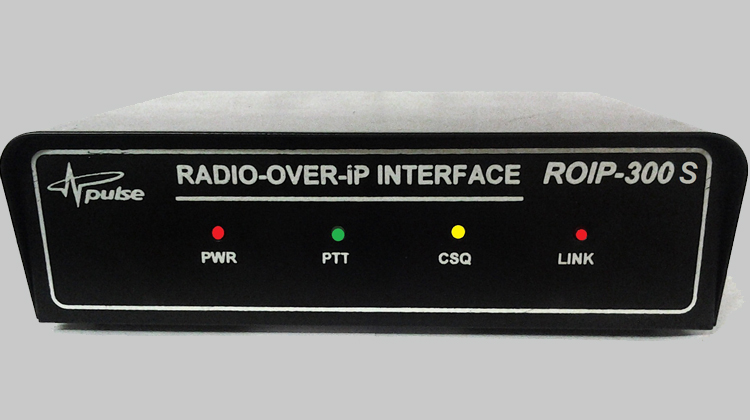

Radio Over IP Gateway (SIP Protocol) - ROIP-300S
Product Detail
- Model No.: ROIP-300S
- Single Port ROIP with Open SIP Protocol Support
Download Catalogue
Single Port Radio Over IP Gateway which works on Open SIP Protocol and supports connectivity to existing VOIP Phones/ Gateway/ SIP Server/ IP-PBX/ Soft Phones. It has inbuilt DTMF Decoder which enables Outgoing Dialling from Radio Dtmf Keypad to any SIP User. Apart from basic features similar to a SIP Phone, it also has a phonebook for speed dialing on predefined sip contacts. Incoming SIP Calls are automatically picked up by the ROIP Gateway and is patched with the Radio. It has only Broadband Connection Port (RJ45) for IP Connectivity. It is not supported on any ROIP Server Software Editions.
